Manual Total Station

GM – 105

Description

Topcon GM 105 Manual Total Station Specifications

Magnification/ Resolving Power32x / 2.5”
Accuracy5”
Working Range+- 6′
Minimum Focus1.3 meter (4.3 ft.)
Operating SystemLynux
Display / KeyboardGraphic LCD 192×80 dots, backlit / Alpha Numeric Keyboard 28 keys
Dust and Water ProtectionIP 66
Operating Temperature – 20 degree to +60 degree
Operating Time / Battery28 hours / BDC70 (Li ion)
On BoardREM Measurement, 3D Coordinate Measurement, Reselection, Stake Out, Topography Observation, Ofset Measurement, Surface Area Calculation, Route Surveying, Point to Line

Overview

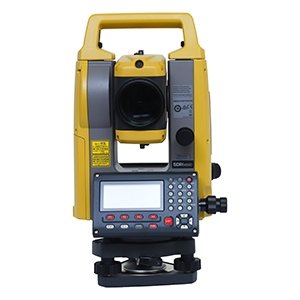

Topcon GM 105 Manual Total Station

The GM-105 Manual Total Station was designed from the ground up to deliver the latest technological advantages in a small, sleek design. It’s rugged waterproof/dustproof magnesium-alloy housing encases an ultra-powerful 6,000m prism range 1.5mm accuracy EDM, Best-in-class 1″ angle accuracy angle encoder system, and 28-hour battery-life power supply.

Other features include a built-in laser plummet, dual-axis compensation, Bluetooth® connectivity, and a battery life of up to 28 hours. In addition to the internal memory of 50,000 points, the total station also features a USB 2.0 slot for up to 32GB of storage. TSshield™ technology provides ultimate security and maintenance capabilities for your total station.
