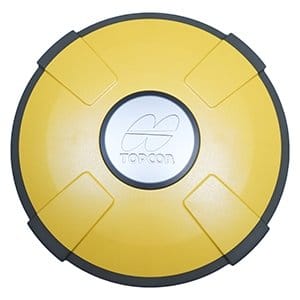

HiPer V
Description
Hiper V
Specifications
| Tracking Capabilities | ||
|---|---|---|
| Number of Channels1 | 226 Tracking Channels Universal Tracking Technology |
|
| Tracked Signals | GPS: L1 CA, L1/L2 P-code, L2C | |
| GLONASS: L1/L2 CA, L1/L2 P-code | ||
| SBAS: WAAS, EGNOS, MSAS | ||
| Positioning Accuracy2 | ||
| Static | L1+L2
H: 3mm + 0.5ppm |
|
| Fast Static | L1+L2
H: 3mm + 0.5ppm |
|
| Kinematic | L1+L2
H: 10mm + 1ppm |
|
| RTK | L1+L2
H: 10mm + 1ppm |
|
| DGPS | <0.5m | |
| Wireless Communication | ||
| Bluetooth® | V2.1 + EDR, Class 2, 115,200bps | |
| Radio | UHF, Spread Spectrum, Cellular (options) |
|
| Environmental | ||
| Dust/Water Protection | IP67 | |
| Shock | 2m (6.56 ft.) pole drop | |
| Operating Temperature | HiPer V receiver with battery
-40°F to + 149°F |
|
| Battery
-4°F to +149°F |
||
| Radio/GSM modems
-4° to +131°F |
||
| Physical | ||
| Enclosure | Magnesium alloy housing | |
| Size | 7.24” D x 3.74“ H (184mm D x 95mm H) |
|
| Weight | HiPer V receiver 2.20 lb. to 2.82 lb. (1.00kg to 1.28kg) |
|
| Battery | 6.9 oz. (195g) | |
| Power Supply | ||
| Standard Battery | Detachable, Li-ion rechargeable battery, 7.2V, 4.3Ah |
|
| Operating Time | >7.5 hours in static mode | |
| at 68°F (20°C)
w/Bluetooth® connection |
||
| External Power Input Voltage | 6.7 to 18V DC | |
1. Number of channels and tracked signals vary according to receiver configurations.
2. RMS Values. Accuracy depends on the number of satellites used, obstructions, satellite geometry (DOP), occupation time, multipath effects, atmospheric conditions, baseline length, survey procedures and data quality.
3. 10 Hz standard. Higher rates available as options.
Overview
Compact, cable-free solution with Vanguard Technology for all GNSS positioning applications.
In a continued commitment to improving the productivity of positioning professionals, Topcon enhances the HiPer family of products by adding Vanguard Technology to the HiPer V. In the early 2000’s Topcon revolutionized GNSS receivers by integrating the design to be compact and light weight. Topcon continues the revolution with Vanguard technology.
Features:
- Vanguard Technology
- 226 GNSS Channels
- Rugged, Magnesium Alloy Construction
- Integrated RTK and Static Receiver
- Fence Antenna Advanced Performance
Topcon raises the standard once again by adding Vanguard Technology’s 226 channels and fence antenna into a versatile, configurable receiver, HiPer V. The additional channels and precision antenna element make RTK positioning faster and more productive than any other receiver on the market.
