Sokkia Auto Level – Complete Guide, Models & Price
Skipper Technologies India Pvt. Ltd. is the authorized distributor of Sokkia auto level instruments in India. We supply automatic levels and other surveying equipment to building companies, civil engineers and land surveyors throughout the country. Sokkia auto leveling instruments are accurate, durable and easy to use for all auto level surveys on site. Sokkia B20, B30A and B40A are some of the most trusted models in this range.
If you also need to measure angle and distance, as well as level, check out our range of Total Station instruments including our Robotic Total Station range for single operator fieldwork. Check out the latest Sokkia auto level price and specifications or contact us for a custom quote.
What is a Sokkia Auto Level?
A Sokkia auto level (or automatic level) is a surveying tool used for accurately measuring and transferring elevations across a site. Like other auto level instruments it has an internal compensator, so it automatically compensates for small tilts and gives you a stable horizontal line of sight each time, without needing to manually adjust for each reading.
Sokkia is a world-renowned, trusted brand of surveying equipment — known for precision optics and a robust build. Sokkia auto level machines are extensively used for auto level survey work in construction and infrastructure projects in India, from small residential sites to large highway and irrigation projects.
How Does a Sokkia Auto Level Work?
The Sokkia auto level employs a simple and accurate optical mechanism:
Internal Compensator – A pendulum type of prism mechanism which automatically levels the line of sight when the instrument is slightly tilted (within a small tolerance range).
Crosshair Telescope – Used to sight a graduated leveling staff at various points on site.
Circular Bubble Level – For rough leveling of the tripod before the compensator takes over for fine adjustment.
The surveyor mounts the instrument on a tripod, rough levels it with the circular bubble, and then reads a leveling staff at various points. The compensator automatically corrects small tilts, so the instrument gives a consistent horizontal reference line for every reading. An auto level survey is much faster than older dumpy level methods that required releveling manually before each reading.

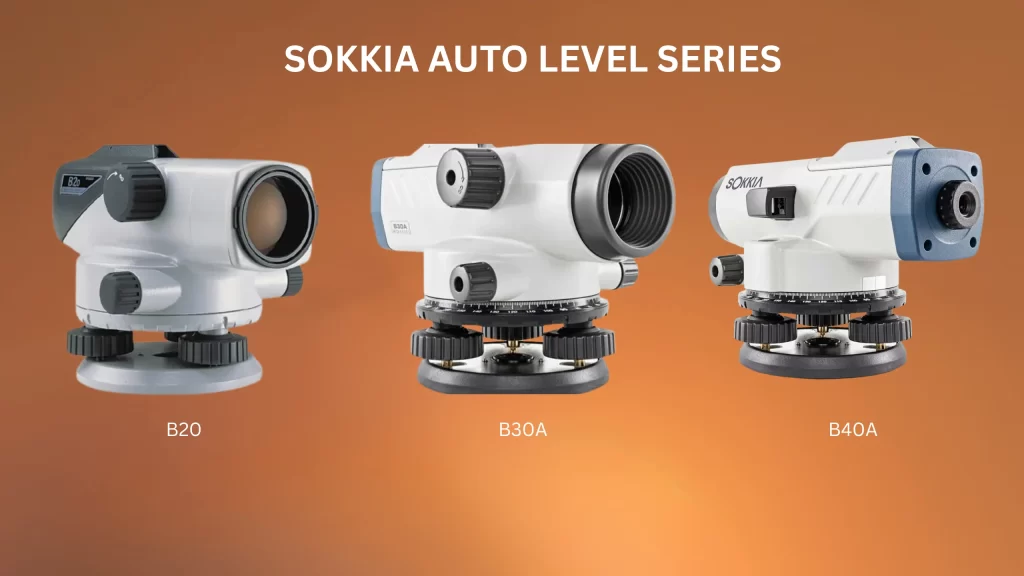

Sokkia Auto Level Models – B20, B30A & B40A
Sokkia’s B-series auto levels cover a range of accuracy and magnification levels suited to different project sizes. Here’s a quick comparison:
| Model | Magnification | Standard Deviation (Accuracy) | Best Suited For |
|---|---|---|---|
| Sokkia B20 | 32x | 0.3″ | Small construction sites, basic leveling work |
| Sokkia B30A | 28x | 0.5″ | General construction, road projects, mid-size sites |
| Sokkia B40A | 24x | 0.5″ | Large infrastructure, precision engineering projects |
As magnification and accuracy increase, so does the Sokkia auto level price — but for projects requiring tighter tolerances (bridges, high-rise foundations, precision grading), investing in a higher-accuracy model like the B40A significantly reduces the risk of costly rework.
Sokkia Auto Level We Offer
Applications of Sokkia Auto Level
Sokkia auto levels are used across a wide range of construction and surveying applications, including:
- Construction Site Leveling and Grading – Establishing a consistent reference level before excavation or foundation work begins.
- Auto Level Survey for Land Surveying and Boundary Marking – Checking elevation differences across a plot to support accurate land documentation.
- Foundation and Footing Layout – Ensuring foundation points are set at the correct, consistent elevation before concrete pouring.
- Road and Infrastructure Projects – Checking cross-sections, gradients, and elevation changes along a road alignment.
- Building Height and Elevation Checks – Verifying floor-to-floor height consistency during multi-story construction.
- Irrigation and Drainage Planning – Establishing correct slope and gradient for water flow in canals, drains, and pipelines.
Sokkia Auto Level vs Total Station vs Robotic Total Station
A common question from site engineers is whether an auto level is enough, or whether a total station is needed. Here’s how they compare:
| Feature | Sokkia Auto Level | Total Station | Robotic Total Station |
|---|---|---|---|
| Measures elevation/height difference | Yes | Yes | Yes |
| Measures horizontal angles | No | Yes | Yes |
| Measures distance | No | Yes | Yes |
| Operator required | 1 (plus staff holder) | 1 (plus prism holder) | 1 (works alone) |
| Best for | Pure leveling tasks | 3D coordinate surveys, layout | Large sites, single-operator efficiency |
| Relative cost | Lowest | Moderate to high | Highest |
How to Use a Sokkia Auto Level: Step-by-Step
- Set up the tripod at a stable location with a clear line of sight to the points you need to measure.
- Mount the instrument on the tripod head and secure it firmly.
- Rough-level using the circular bubble by adjusting the tripod legs until the bubble is centered.
- Let the internal compensator fine-level the line of sight automatically — this happens instantly once rough leveling is done.
- Sight the leveling staff placed at the first point (usually a known benchmark) and record the reading.
- Move the staff to the next point and take subsequent readings, calculating height differences between points.
- Record all readings in a level book or digital data collector for further processing.
The compensator does the fine leveling automatically, which allows an experienced surveyor to survey with an auto level much quicker than with a traditional dumpy level where you have to manually relevel at every single point.
Sokkia Auto Level Price in India
The Sokkia auto level price in India depends on the model, magnification, and accuracy required for your project.
Note: These prices are indicative and can vary based on GST, dealer margins, bundled accessories (tripod, staff), and ongoing promotions. For the latest cost of Sokkia auto level with GST and bulk order quotes, Contact Skipper Technologies for a custom quote.
Maintenance & Calibration Tips for Sokkia Auto Level
To maintain accuracy of your Sokkia auto level over time:
- Periodically check the compensator function – tap the instrument while sighting a target and the cross hair should move briefly and then settle to the same position. If it does not come back properly, you may need to have the compensator serviced.
- Do a two-peg test regularly. It checks the line of sight for collimation error and is one of the simplest field accuracy checks for any auto level.
- Keep the lens clean and free from dust – use a proper lens brush and cloth, never wipe with a rough cloth that can scratch the optics.
- When not in use, store in the original case and do not leave the instrument in direct sunlight or extreme heat for extended periods of time.
- Handle with care. Internal compensator parts are sensitive to shocks.
Why Buy Sokkia Auto Level from Skipper Technologies?
- Authorized Sokkia distributor in India — genuine products with full manufacturer warranty
- Pan-India after-sales service and calibration support
- Competitive pricing with GST invoicing
- Expert guidance to help you choose the right model (B20, B30A, or B40A) for your specific project needs
- Fast delivery across India
Sokkia Auto Level FAQ
The Sokkia B30A is a low cost instrument for general building and road work. If you need high accuracy for infrastructure work, then we recommend the B40A.
Sokkia auto level for levelling height / elevation difference Total station measures horizontal angles and distance . It can do full 3D coordinate surveys and construction layout .
The Sokkia auto levels have a standard deviation of ±1.0 mm to ±2.0 mm for km of double-run leveling depending on the model.
Auto level is good enough for elevation and level checking. However, for measuring distances and angles for building layouts or boundaries, you will need a total station or robotic total station and the auto level.
Skipper Technologies India Pvt Ltd Authorized distributor of Sokkia - Genuine Product with Full Warranty Pan India Delivery & After Sales Calibration Support
Conclusion
The Sokkia auto level is one of the most reliable and cost-effective land surveying equipment for elevation and leveling work whether you are grading a construction site, checking building heights, or planning irrigation gradients. Models such as the B20, B30A and B40A cover a range of budgets and accuracy requirements so there is a Sokkia auto level for virtually any size project.
Then, when you also need to measure angles and distances, pairing your auto level with a Total Station or Robotic Total Station gives you total coverage for every stage of a survey or construction layout. Contact Skipper Technologies for the latest Sokkia auto level price and expert advice on the best model for your project.
